96-04 Tacoma Open Wing Hybrid Front Bumper - Welded

Regular price$999.99
Shipping calculated at checkout.
Grille Guard
Fog Lights
Brand: True North Fabrications

Info to know before you order:

  • This bumper was designed specifically for 3rd gen 4runners and 01-04 Tacomas. Tacoma owners installing this bumper will need to add 3/4" spacers (made out of 6061 aluminum blocks) to the bottom mounting points and use extended M12 hardware (spacers and hardware are included). The bumper will work on 96-00 models but has not been tested in-house yet, so if you have those years please be aware it might not fit perfectly and have a gap between the bumper and grille. If you do have a 98-00 model be aware you might also have to trim 2 inches off the front of the frame horns on the vehicle. This is the same modification required on all years of the 3rd gen 4runner and will not reduce the integrity of the frame. After cutting, clean and coat the cut area with some spray paint to prevent any rust issues.
  • This bumper will not work with body lifts without leaving a gap. It will work with stock height and suspension lifted vehicles.
  • There may be small imperfections on the surfaces of the parts, such as small areas of surface rust or shallow scratches caused during the manufacturing or shipping processes.

A little about the bumper:

  • The new open hybrid design is stronger, more lightweight, and offers the best approach angle of any other True North bumper to date. Not to mention it looks badass!

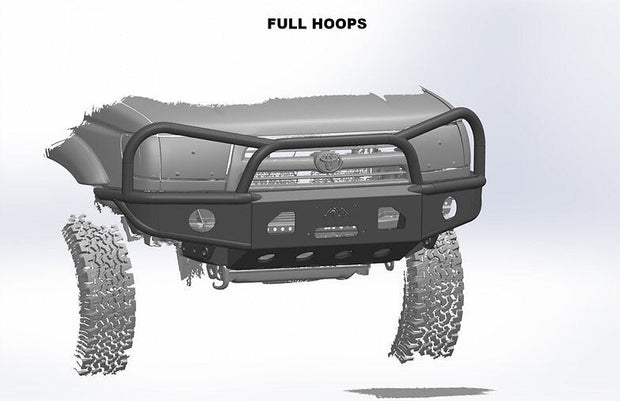

  • We wanted to be able to offer the best fitment possible so we took our design a step above all the other fabrication companies out there and had the front of the truck laser-scanned! This allows us to model the bumper within our cad programs using a virtual representation of the truck that is accurate to within .005 inches!
  • The frame mounting plate, winch plate, and skid supports are all 7 gauge HRPO steel. The main vertical supports are 3/8” thick steel. Shackle mounts are 3/8" steel with 1.5 OD .250 wall DOM tubing welded in. All other sheet metal parts are made of 11 gauge HRPO steel. All tubing is 1.75 OD 11 gauge ERW steel.
  • The bumper was modeled around a warn m8000 winch that has a 10" x 4.5" mounting pattern and centered fairlead/spool. Other winches may fit (similar size and mounting pattern required). Depending on the winch size you will possibly need to detach and relocate the control box.
  • We realized that these bumpers are going to be mounted on 20ish-year-old vehicles and the chances of each and every one of them having a perfect frame with no previous front end damage are slim. So in order to offer the best fitment possible, we made all the mounting points slightly oversized. This will give you a little adjustability when mounting. Depending on how far you need to adjust you will possibly need to use washers as shims between the bumper and the frame. New bolts and washers are included.
  • Weighs roughly 80 lbs. Any grille guard tubing will add to this.

Lead time: 12 Weeks This is only an estimate and may occasionally be slightly longer or shorter depending on the workload and availability of parts. This does not include time in transit after shipment. Please contact us for updates on your order.

Shipping: $299 Commercial Address, $399 Residential Address. Free local pickup in Sarasota, FL is also available. If you are outside the lower 48 please contact for a shipping quote.
